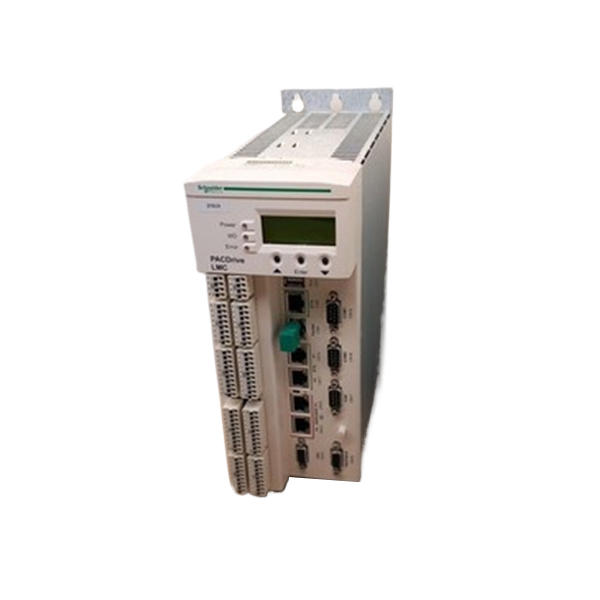

Schneider Electric PacDrive Controller LMC400CAA10000:

A Comprehensive Overview

Introduction

The Schneider Electric PacDrive controller, a cornerstone of the company’s automation solutions, integrates logic, motion, and robotics control into a unified hardware platform. Originating from ELAU’s pioneering work in integrated servo systems, PacDrive has evolved into a versatile automation solution used across industries such as packaging, printing, food processing, and robotics. This controller leverages advanced real-time operating systems, standardized programming frameworks, and modular design principles to deliver high-performance, scalable automation.

Technical Features

Key Applications

Advantages

1. All-in-One Integration
   • Combines PLC, motion control, and robotics in a single controller, eliminating the need for separate hardware.
   • Reduces wiring complexity by 40% through Sercos III fieldbus integration.
2. High Performance
   • Real-time synchronization of 99 axes with sub-millisecond latency.
   • Supports 4096 dynamic cam curves for complex motion profiles (e.g., capping machines with variable speeds).
3. Cost Efficiency
   • Energy savings of 15–20% via optimized motor control algorithms.
   • 30% faster project deployment with modular programming and pre-built AFB libraries.
4. Scalability & Flexibility
   • Scalable from 1-axis to 99-axis configurations.
   • Open architecture supports third-party devices via EtherCAT and CANopen.
5. Safety & Compliance
   • SIL 3-certified safety functions (e.g., emergency stops, safe torque off).
   • Compliance with global standards (ISO 13849, IEC 61508).

Case Study: High-Speed Packaging Line

A leading beverage manufacturer deployed the PacDrive C400 to automate a 12-axis filling and capping line. The solution achieved:

• Throughput Increase: 25% faster cycle times (from 12,000 to 15,000 bottles/hour).
• Energy Savings: 18% reduction in motor power consumption via adaptive frequency control.
• Downtime Reduction: 40% fewer stoppages due to integrated predictive maintenance diagnostics.

Conclusion

The Schneider Electric PacDrive controller stands as a testament to integrated automation, offering unmatched scalability, precision, and efficiency. Its adoption across industries underscores its ability to streamline complex motion control tasks while adhering to stringent safety and compliance standards. For manufacturers seeking to future-proof their operations, PacDrive provides a robust, scalable, and cost-effective solution.
